CASE 770 EX Backhoe Loader Specification and Features

Name: CASE 770 EX Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770EX
Price: 48000 USD INR
Availability: InStock

CASE 770 EX Backhoe Loader Specification and Features

Unleash the Power of the CASE 770 EX Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentExcavatorHeavy Machinery

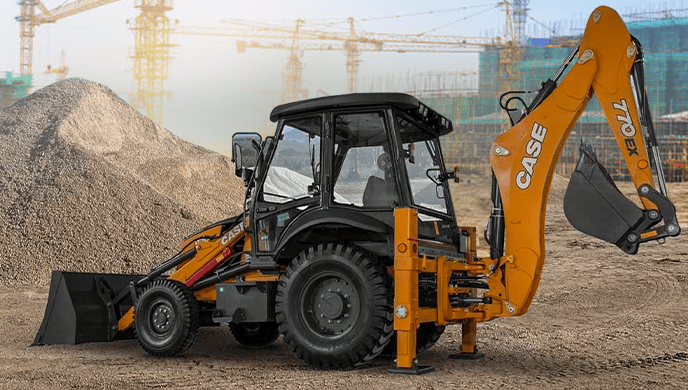

The CASE 770 EX Backhoe Loader is a powerful and versatile machine designed for demanding construction and industrial applications. This Tier 4B/CEV BS-IV compliant backhoe boasts a robust 74 HP engine with a 3840 cc displacement and a substantial 340 Nm of torque, ensuring superior performance even in challenging terrains. Its impressive specifications include a 1.1 Cum standard bucket capacity, a 4400 mm maximum digging depth, and a 5500 mm maximum working height. The 770 EX features a load-sensing hydraulic system for optimal efficiency, and its durable CARRARO transmission provides smooth and reliable power transfer. With a maximum operating weight of 7780 kg, this machine is built to handle heavy loads with ease. Experience the power, efficiency, and versatility of the CASE 770 EX – your ultimate solution for excavation and material handling.

CASE

Backhoe Loader

7780 Kg

74 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Excavator

Heavy Machinery

Technical Specifications

Compliant:Tier 4B/ CEV BS-IV

Displacement:3840 cc

Air Intake Type:Turbocharged Intercooled

Gross Power:74 HP

Maximum Torque:340 NM

Dump Height:2730 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

See Morebackhoe Loader Dimensiondipper Configuration:4300 MM

Maxd Dig Depth:4400 mm

Reach Ground Level To Swing Center:5.63 mm

Reach Ground Level To Rear Wheel Center:6950 mm

Reach At Full Height To Slew Center:2150 mm

Max Working Height:5500 mm

Max Load Over Height:3800 mm

Bucket Rotation:204 Deg

See Moreoverall Dimension Amp Weightmax Operating Weight:7780 Kg

Transport Length:5880 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2270 MM

Track Width Rear:1700 MM

Track Width Front:2WD – 1880 MM / 4WD - 1900 MM

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Open Center Load Sensin

Pump Type:Twin gear Pump

Pump Flow:126 lpm

System Relief Pressure:195 Bar

Engine Oil:9.1 Ltr

Rear Axle:17.1 Ltr.

Hydraulic Oil Replacement:80 Ltr.

Transmission Oil Capacity:18 Ltr (2WD), 20 Ltr (4WD)

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:4F-4R Power Shuttle Synchromesh Transmission

Rear:CARRARO 28.32M

Front:CNH PS1300 (2WD) CARARRO/NH 26.17M (4WD)

Front Axle Oscillation:±21 (2WD) ±16 (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Hydraulic foot operated, 2 disc per side

Brakes Parking:Mechanically actuated caliper type brake pack on rear axle input shaft

Hd Tyre Rear Optional:14x25 -20PR/12PR

Standard Tyre Front:9x16 -16PR

Standard Tyre Rear:16.9x28 -12PR

Battery:12 V, 110 Ah

Forward:EX : 5.8/9.3/19.5/34.1

Reverse:EX : 6.8/10.8/22.1/NR

Brand:CASE
