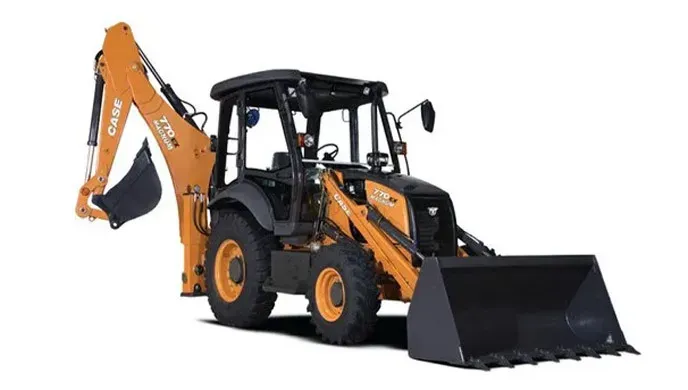

CASE 770 EX Magnum Backhoe Loader Specification and Features

Name: CASE 770 EX Magnum Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770EX
Price: 48000 USD INR
Availability: InStock

CASE 770 EX Magnum Backhoe Loader Specification and Features

Unleash Unmatched Power: CASE 770 EX Magnum Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

The CASE 770 EX Magnum Backhoe Loader is a powerful and versatile machine built for demanding applications. Its robust design, featuring a 3900cc turbocharged engine delivering 86 HP and 402 Nm of torque, ensures superior performance across diverse terrains and tasks. Boasting impressive specifications including a 1.1 Cum bucket capacity, 3700 Kg maximum lifting capacity, and a 45° dump angle, the 770 EX excels in digging, loading, and lifting operations. This BS-III compliant machine offers a range of advanced features for enhanced productivity and operator comfort, including a Carraro 4WD transmission, power steering, and a durable construction for extended operational life. Experience unmatched power, precision, and efficiency with the CASE 770 EX Magnum Backhoe Loader.

CASE

Backhoe Loader

8230 Kg

86 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:BS-III

Displacement:3900 cc

Air Intake Type:Turbocharged

Gross Power:86 HP

Maximum Torque:402 NM

Dump Height:2732 mm

Load Over Height:3275 mm

Hinge Pin Height:3580 mm

Reach At Ground:1486 mm

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

Max Pay Load:1760 Kg

Maximum Lifting Capacity:3700 Kg

See Morebackhoe Loader Dimensionmaxd Dig Depth:4547 mm

Reach Ground Level To Swing Center:5753 mm

Max Working Height:5593 mm

Max Load Over Height:3774 mm

Bucket Rotation:204 Degree

Bucket Breakout Force:4535/5630 Kgf

Dipper Tear Out Force:3250/4300 Kgf

Safe Working Load:1100 Kg

See Moreoverall Dimension Amp Weightmax Operating Weight:8230 Kg

Transport Length:2300 mm

Width Over Bucket:2300 MM

Wheelbase:2230 mm

Minimum Ground Clearance:400 mm

Overall Transport Height:3840 mm

Pump Type:Gear pump

Pump Flow:123 lpm

Engine Oil:9.1 Ltr

Rear Axle:17 Ltr.

Transmission Oil Capacity:22 Ltr.

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:110 Ltr

Transmission Make And Model:CARRARO 4WD TLB1

Powertrain Type:4 forward and 4 reverse travel speeds with power Shuttle

Rear:Rigid axle with CARRARO 28.32M (2WD/4WD)

Front:CNH PS1300 (2WD), Carraro 26.17 (4WD)

Front Axle Oscillation:21 Degree (2WD), 16 Degree (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Brakes Service:Wet multi-discs

Brakes Parking:Manual, with lever

Hd Tyre Rear Optional:14x25 - 20 PR

Standard Tyre Front:9.0x16 - 16 PR

Standard Tyre Rear:16.9x28 - 12 PR

Battery:12 V, 130 Ah

Forward:6.2/10/20.7/39.2

Reverse:7.4/12/Not Recommended

Brand:CASE
