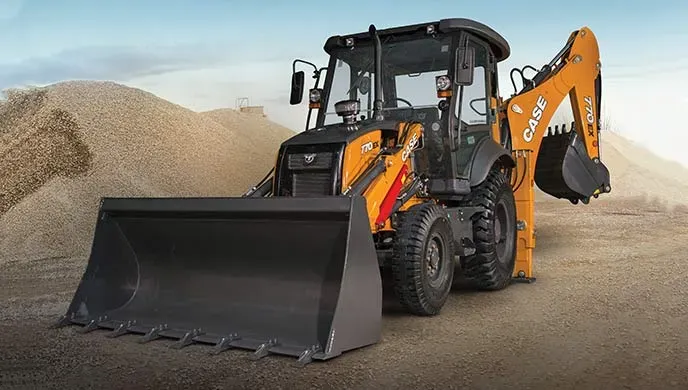

CASE 770 EX Plus Backhoe Loader Specification and Features

Name: CASE 770 EX Plus Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770EXPlus
Price: 48000 USD INR
Availability: InStock

CASE 770 EX Plus Backhoe Loader Specification and Features

Unmatched Power and Precision: CASE 770 EX Plus Backhoe Loader

Backhoe LoaderCASE Construction EquipmentHeavy MachineryExcavatorConstruction Equipment

The CASE 770 EX Plus Backhoe Loader is engineered for superior performance and unmatched versatility. This Tier 4B/CEV BS-IV compliant machine boasts a powerful 74 HP engine with 3840 cc displacement and a robust 340 Nm of torque, ensuring efficient operation even under demanding conditions. Its impressive specifications include a 1.1 Cum bucket capacity, a maximum dig depth of 4700 mm, and a maximum load-over height of 3800 mm. The 770 EX Plus features a user-friendly Power Shuttle Synchromesh transmission (4F-4R) and an open-center load sensing hydraulic system for precise control and smooth operation. Durable CARRARO axles and a powerful hydraulic system contribute to its reliability and long lifespan. This backhoe loader is ideal for diverse tasks such as excavation, material handling, and lifting, offering a high return on investment for construction and infrastructure projects. Upgrade your operations with the CASE 770 EX Plus.

CASE

Backhoe Loader

7955 Kg

74 HP

Features & Highlights

Backhoe Loader

CASE Construction Equipment

Heavy Machinery

Excavator

Construction Equipment

Technical Specifications

Compliant:Tier 4B/ CEV BS-IV

Displacement:3840 cc

Air Intake Type:Turbocharged Intercooled

Gross Power:74 HP

Maximum Torque:340 NM

Dump Height:2730 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

See Morebackhoe Loader Dimensiondipper Configuration:15 Feet

Maxd Dig Depth:4700 mm

Reach Ground Level To Swing Center:5895 mm

Reach Ground Level To Rear Wheel Center:7220 mm

Reach At Full Height To Slew Center:2400 mm

Max Working Height:5700 mm

Max Load Over Height:3800 mm

Bucket Rotation:204 Degree

See Moreoverall Dimension Amp Weightmax Operating Weight:7955 Kg

Transport Length:5960 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2270 MM

Track Width Rear:1700 MM

Track Width Front:2WD – 1880 MM/ 4WD - 1900MM

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Open Center Load Sensing

Pump Flow:126 lpm

System Relief Pressure:210 Bar

Engine Oil:9.1 Ltr

Rear Axle:17.1 Ltr.

Hydraulic Oil Replacement:80 Ltr.

Transmission Oil Capacity:18 Ltr.

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:Power trai4F-4R Power Shuttle Synchromesh Transmissionn type

Rear:CARRARO 28.32M

Front:CNH PS1300 (2WD)/ CARARRO/NH 26.17M (4WD)

Front Axle Oscillation:±21 (2WD)/ ±16 (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Hydraulic foot operated, 2 disc per side

Brakes Parking:Mechanically actuated caliper type brake pack on rear axle input shaft

Hd Tyre Rear Optional:14x25 -20PR/12PR

Standard Tyre Front:9x16 -16PR

Standard Tyre Rear:16.9x28 -12PR

Battery:12 V, 110 Ah

Forward:5.8/9.3/19.5/35.0

Reverse:6.8/10.8/22.1/NR

Brand:CASE
