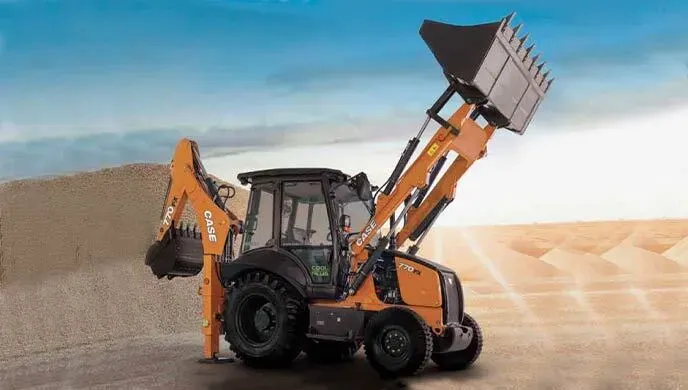

CASE 770 FX Backhoe Loader Specification and Features

Name: CASE 770 FX Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770FX
Price: 48000 USD INR
Availability: InStock

CASE 770 FX Backhoe Loader Specification and Features

Unleash the Power: CASE 770 FX Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

The CASE 770 FX Backhoe Loader is a powerful and versatile machine built for demanding construction and agricultural applications. Its Tier 4B compliant 74 HP engine delivers impressive power and torque (325 Nm), ensuring efficient performance across various tasks. With a generous 1.1 Cum bucket capacity and impressive digging depth (4400 mm), the 770 FX excels in excavation and material handling. The robust hydraulic system (123 lpm flow, 195 Bar relief pressure) provides smooth and controlled operation, while features like a power shuttle transmission with TC ensure ease of use and operator comfort. The 770 FX's impressive lift and reach capabilities (max load over height of 3800 mm), combined with its durable design and ample ground clearance, make it ideal for navigating challenging terrains and completing complex projects. Experience unparalleled performance and reliability with the CASE 770 FX.

CASE

Backhoe Loader

7600 Kg

74 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:Tier 4B

Displacement:3400 cc

Air Intake Type:Turbocharged Intercooled

Gross Power:74 HP

Maximum Torque:325 NM

Dump Height:2730 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

See Morebackhoe Loader Dimensiondipper Configuration:14 Feet

Maxd Dig Depth:4400 mm

Reach Ground Level To Swing Center:5620 mm

Reach Ground Level To Rear Wheel Center:6950 mm

Reach At Full Height To Slew Center:2100 mm

Max Working Height:5500 mm

Max Load Over Height:3800 mm

Bucket Rotation:204 Degree

See Moreoverall Dimension Amp Weightmax Operating Weight:7600 Kg

Transport Length:5880 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2300 MM

Track Width Rear:1700 MM

Track Width Front:1880 MM (2WD), 1900 MM (4WD)

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Open Centre

Pump Type:Gear

Pump Flow:123 lpm

System Relief Pressure:195 Bar

Engine Oil:9.1 Ltr

Rear Axle:17.1 Ltr.

Hydraulic Oil Replacement:170/2000 Ltr.Hrs

Transmission Oil Capacity:18 Ltr (2WD), 20 Ltr (4WD)

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:Power Shuttle with TC

Rear:CARRARO 28.32M

Front:CARRARO 28.32M (2WD)/ CNH PS1300 (4WD)

Front Axle Oscillation:±21 (2WD), ±16 (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Wet Multi Discs, 4 Discs

Brakes Parking:Manual with Lever

Hd Tyre Rear Optional:14.0 x 25 – 20 PR

Standard Tyre Front:9.0 x 16 – 16 PR

Standard Tyre Rear:16.9 x 28 – 12 PR

Battery:12 V, 110 Ah

Forward:5.7/9.1/19.5/34.9

Reverse:7.0/11.2/23.8/NR

Brand:CASE
