CASE 770 FX PLUS Backhoe Loader Specification and Features

Unleash Unrivaled Power and Precision: CASE 770 FX PLUS Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

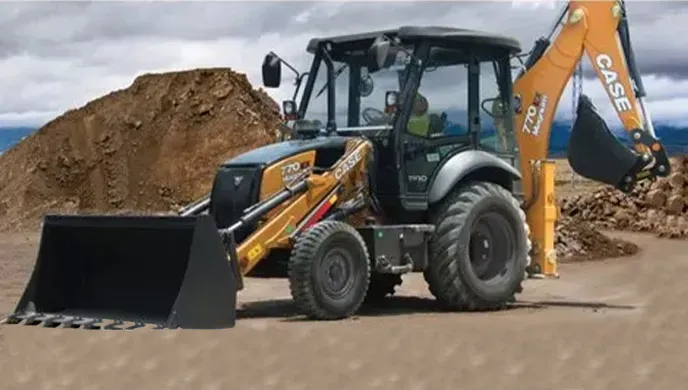

The CASE 770 FX PLUS Backhoe Loader is a powerful and versatile machine built for demanding construction and industrial applications. This BS-IV compliant loader boasts a robust 74 HP engine with 3400 cc displacement and a high torque output of 325 Nm, ensuring superior performance even under heavy loads. Its impressive specifications, including a 1.1 Cum bucket capacity, 4700 mm max dig depth, and a generous 129 Ltr fuel tank, translate to exceptional productivity and efficiency. The open-center hydraulic system with a variable displacement pump ensures smooth, responsive operation, while the Carraro axles and Power Shuttle transmission provide reliable power and maneuverability. Key features include a 204-degree bucket rotation, a 45° dump angle, and a maximum operating weight of 7920 Kg. Experience unmatched power, precision, and durability with the CASE 770 FX PLUS.

CASE

Backhoe Loader

7920 Kg

74 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:CEV BS-IV

Displacement:3400 cc

Air Intake Type:Turbocharged

Gross Power:74 HP

Maximum Torque:325 NM

Dump Height:2730 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

See Morebackhoe Loader Dimensiondipper Configuration:15 Feet

Maxd Dig Depth:4700 mm

Reach Ground Level To Swing Center:5900 mm

Reach Ground Level To Rear Wheel Center:7230 mm

Reach At Full Height To Slew Center:2340 mm

Max Working Height:5700 mm

Max Load Over Height:3300 mm

Bucket Rotation:204 Deg

See Moreoverall Dimension Amp Weightmax Operating Weight:7920 Kg

Transport Length:5960 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2300 MM

Track Width Rear:1700 MM

Track Width Front:1880 MM (2WD), 1900 MM (4WD)

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Open Centre

Pump Type:Variable Displacement

Pump Flow:143 lpm

System Relief Pressure:210 Bar

Engine Oil:9.1 Ltr

Rear Axle:Carraro 28.32

Hydraulic Oil Replacement:170/2000 Ltr./Hrs

Transmission Oil Capacity:18 Ltr (2WD), 20 Ltr (4WD)

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:Power Shuttle with TC

Rear:CARRARO 28.32M

Front:CARRARO 28.32M (2WD)/ CNH PS1300 (4WD)

Front Axle Oscillation:±21 (2WD), ±16 (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Wet Multi Discs, 4 Discs

Brakes Parking:Manual with Lever

Hd Tyre Rear Optional:14.0 x 25 – 20 PR

Standard Tyre Front:9.0 x 16 – 16 PR

Standard Tyre Rear:16.9 x 28 – 12 PR

Battery:12 V, 130 Ah

Forward:5.7/9.1/19.5/34.9

Reverse:7.0/11.2/23.8/NR

Brand:CASE
