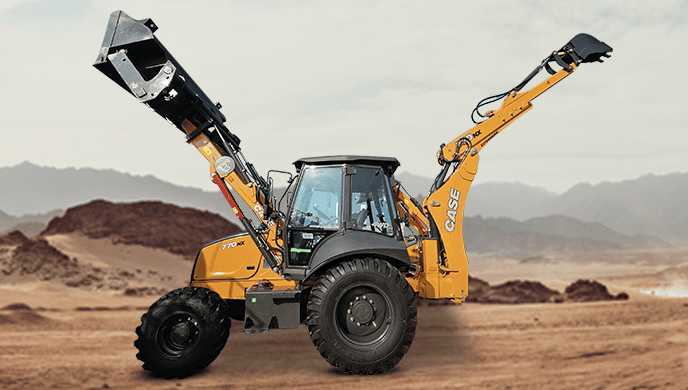

CASE 770 NX Backhoe Loader Specification and Features

Name: CASE 770 NX Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770NX
Price: 47000 USD INR
Availability: InStock

CASE 770 NX Backhoe Loader Specification and Features

Unmatched Power and Precision: The CASE 770 NX Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy Machinery770NX

The CASE 770 NX Backhoe Loader delivers exceptional power and performance. Its turbocharged intercooled engine generates 74 hp and 275 Nm of torque, ensuring efficient operation even under heavy loads. With a generous 1100 cu m bucket capacity and impressive digging depth of 4400 mm, this machine excels in diverse applications. The robust build, featuring a CARRARO 2WD TLB1 transmission and a powerful hydraulic system, guarantees durability and reliability. Experience superior control with its power steering and responsive hydraulics. Key features include a 21-degree front axle oscillation for superior terrain adaptability, a large fuel tank for extended operation, and convenient maintenance access. The CASE 770 NX: unmatched power, precision, and productivity.

CASE

Backhoe Loader

7600 Kg

74 Hp

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

770NX

Technical Specifications

Air Intake Type:Turbocharged Intercooled

Gross Power:74 Hp

Maximum Torque:275 NM

Dump Height:2730 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Max Reach At Full Height:1190 mm

Dump Angle:45 °

Bucket Capacity (Standard):1100 Cum

See Morebackhoe Loader Dimensionmaxd Dig Depth:4400 mm

Reach Ground Level To Swing Center:5630 mm

Reach Ground Level To Rear Wheel Center:6950 mm

Reach At Full Height To Slew Center:2150 mm

Max Working Height:5500 mm

Max Load Over Height:3600 mm

Bucket Breakout Force:204 kGf-5000/49 kN

Dipper Tear Out Force:3200 kGf / 31 KN

See Moreoverall Dimension Amp Weightmax Operating Weight:7600 Kg

System Type:Open Center Load Sensing System

Pump Type:Variable Displacement

Pump Flow:118 LPM

System Relief Pressure:240 Bar

Engine Oil:8.5 Ltr

Rear Axle:17.1 Leter

Hydraulic Oil Replacement:44 @ 4000 hrs

Transmission Oil Capacity:18 L

Fuel Tank:129 Ltr

Fuel Type:Diesel

Coolant:10 L

Hydraulic Oil System:44 Ltr

Transmission Make And Model:CARRAO 2WD TLB1

Rear:CARRARO 2WD TLB1

Front:CNH PS1300

Front Axle Oscillation:21 Degree

Type:Power Steering

System Pressure:140 Bar

Turning Circle Diameter Otside Bucket:4600 mm

Turning Circle Diameter Outside Bucket Not Braked:5550 mm

Brakes Service:Hydraulic Foot Operated 2 Disc per side

Brakes Parking:Mechanical actuated calipper type brake pack on rear axle input shaft

Standard Tyre Front:9 x 16 - 16 PR

Standard Tyre Rear:16.9 X 28 - 12PR

Brand:CASE
