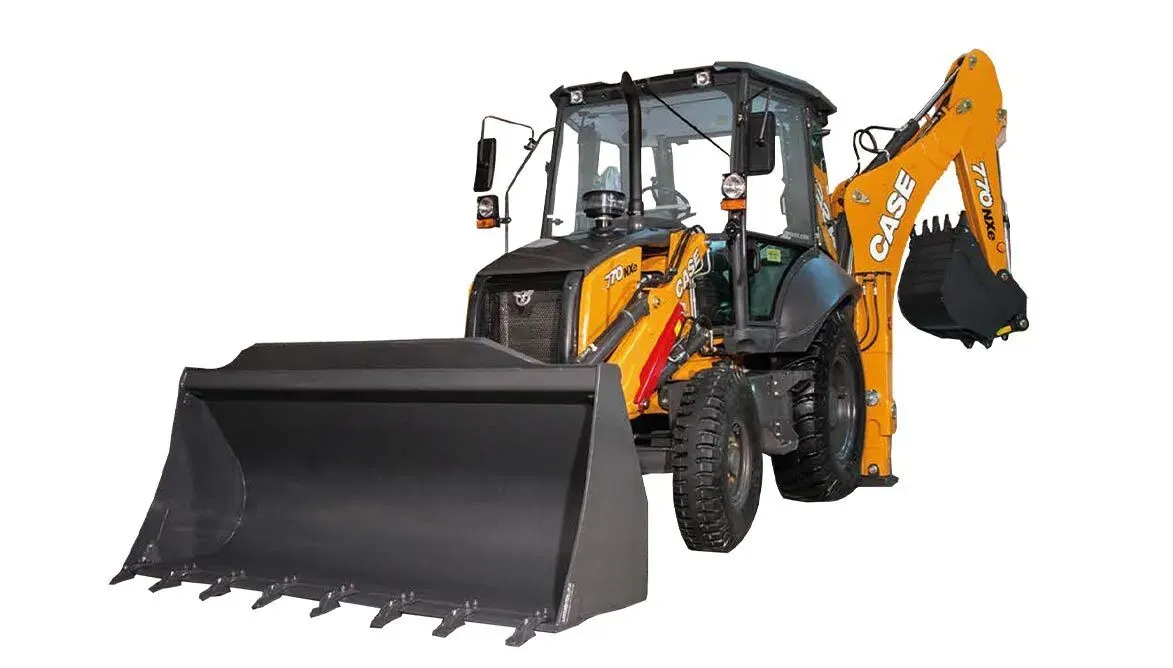

CASE 770NXe Backhoe Loader Specification and Features

Name: CASE 770NXe Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-770NXe
Price: 47000 USD INR
Availability: InStock

CASE 770NXe Backhoe Loader Specification and Features

Unleash Unrivaled Power and Precision: The CASE 770NXe Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

The CASE 770NXe Backhoe Loader is a powerful and versatile machine built for demanding applications. Boasting a robust 49.5 HP engine with a displacement of 3900cc and a substantial 1.1 Cum bucket capacity, this BS-III compliant loader delivers exceptional performance. Its open-center load sensing hydraulic system ensures efficient operation, while features like a 4F-4R shuttle synchromesh transmission and a power steering system enhance maneuverability and control. With impressive reach and lift heights (max dig depth 4400 mm, max load over height 3640 mm), the 770NXe excels in diverse tasks. Its durable construction, combined with key specifications like a 129 Ltr fuel tank and a 100 Ltr hydraulic oil system, ensures maximum uptime and productivity. Experience unmatched power and precision with the CASE 770NXe.

CASE

Backhoe Loader

7610 Kg

49.5 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:BS-III

Displacement:3900 cc

Air Intake Type:Water Cooled

Gross Power:49.5 HP

Maximum Torque:252.2 NM

Dump Height:2720 mm

Load Over Height:3300 mm

Hinge Pin Height:3580 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:1980 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.1 Cum

See Morebackhoe Loader Dimensiondipper Configuration:14 Feet

Maxd Dig Depth:4400 mm

Reach Ground Level To Swing Center:5630 mm

Reach Ground Level To Rear Wheel Center:6950 mm

Reach At Full Height To Slew Center:2150 mm

Max Working Height:5490 mm

Max Load Over Height:3640 mm

Bucket Rotation:185 Degree

See Moreoverall Dimension Amp Weightmax Operating Weight:7610 Kg

Transport Length:5880 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2280 MM

Track Width Rear:1700 MM

Track Width Front:1880 MM

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Open Centre Load Sensing system

Pump Type:Axial Piston with Electric Displacement Cntrol

Pump Flow:119 lpm

System Relief Pressure:240 Bar

Engine Oil:8.6 Ltr

Rear Axle:17.1 Ltr.

Hydraulic Oil Replacement:48/4000 hr.

Transmission Oil Capacity:18 Ltr.

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:100 Ltr

Transmission Make And Model:CARRARO 2WD TLB1

Powertrain Type:4F-4R Shuttle Synchromesh Transmission

Rear:CARRARO 28.32M

Front:CNH PS1300 (2WD)

Front Axle Oscillation:±21 Degree(2WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:4.6 mm

Turning Circle Diameter Outside Bucket Not Braked:5.55 mm

Brakes Service:Hydraulic foot operated, 2 disc per side

Brakes Parking:Mechanically actuated caliper type brake pack on Rear axle input shaft

Hd Tyre Rear Optional:14x25- 12PR

Standard Tyre Front:9x16 -16PR

Standard Tyre Rear:16.9x28 -12PR

Battery:12 volts, 110 Ah

Forward:5.0/7.9/16.9/32.4

Reverse:5.9/9.4/19.8/NR

Brand:CASE
