CASE 851 EX Backhoe Loader Specification and Features

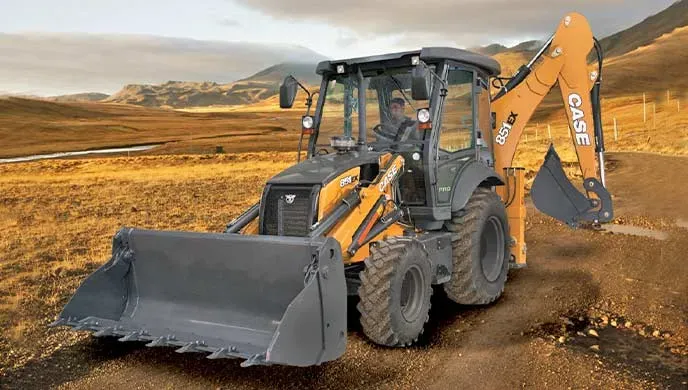

Main image of CASE 851 EX Backhoe Loader Specification and Features

CASE 851 EX Backhoe Loader Specification and Features

Unleash the Power: CASE 851 EX Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryAgricultural Equipment

The CASE 851 EX Backhoe Loader is a powerful and versatile machine built for demanding construction and agricultural tasks. Boasting a robust 96 HP engine with 3900 cc displacement and a substantial 420 Nm of torque, it delivers exceptional performance. Its impressive specifications include a 1.2 Cum bucket capacity, 5630 Kgf breakout force, and a maximum payload of 2050 Kg. Features like a 45° dump angle, 4700 mm dig depth, and a power shuttle transmission with 4 forward and 4 reverse speeds ensure efficient operation and maneuverability. The CASE 851 EX meets BS-III emission standards and offers a range of safety features for operator protection. With its impressive reach, lift capacity, and durable construction, the 851 EX is an investment in reliability and productivity.

Features & Highlights

Backhoe Loader
CASE
Construction Equipment
Heavy Machinery
Agricultural Equipment

Technical Specifications

Compliant:BS-III
Displacement:3900 cc
Air Intake Type:Turbocharged
Gross Power:96 HP
Maximum Torque:420 NM
Dump Height:2700 mm
Load Over Height:3800 mm
Hinge Pin Height:3600 mm
Reach At Ground:2100 mm
Dump Angle:45 °
Bucket Capacity (Standard):1.2 Cum
Bucket Breakout Force:5630 Kgf
Max Pay Load:2050 Kg
See Morebackhoe Loader Dimensionmaxd Dig Depth:4700 mm
Reach Ground Level To Swing Center:5900 mm
Max Working Height:5700 mm
Max Load Over Height:3800 mm
Bucket Rotation:204 Degree
Safe Working Load:1100 Kg
Max Lift Capacity:1530 Kg
See Moreoverall Dimension Amp Weightmax Operating Weight:8230 Kg
Wheelbase:2200 mm
Minimum Ground Clearance:400 mm
Overall Transport Height:3800 mm
Pump Type:Gear pump
Pump Flow:151 lpm
System Relief Pressure:210 Bar
Engine Oil:9.1 Ltr
Rear Axle:17 Ltr.
Transmission Oil Capacity:22 Ltr.
Fuel Tank:129 Ltr
Coolant:20 Ltr.
Hydraulic Oil System:110 Ltr
Transmission Make And Model:CARRARO 2WD TLB1
Powertrain Type:4 forward and 4 reverse travel speeds with power Shuttle
Rear:CARRARO 28.32M
Front:CNH PS1300 (2WD)
Type:Power Steering
System Pressure:140 Bar
Unit Displacement:125 CC
Brakes Service:Wet multi-discs
Brakes Parking:Manual, with lever
Hd Tyre Rear Optional:14x25 - 20 PR
Standard Tyre Front:9.0x16 - 16 PR
Standard Tyre Rear:16.9x28 - 12 PR
Forward:6.2/10/20.7/39.2
Reverse:7.4/12/ Not Recommended
Brand:CASE
