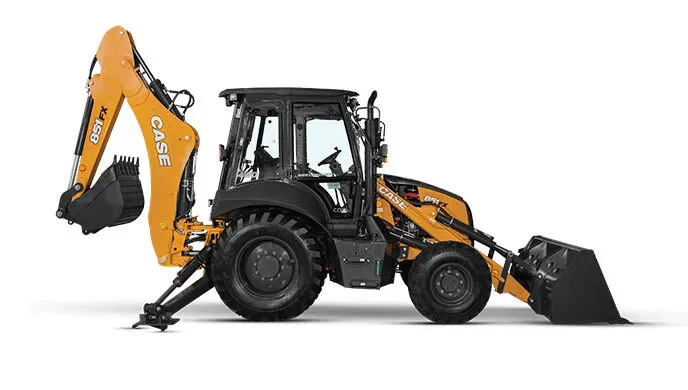

CASE 851 FX CP Backhoe Loader Specification and Features

Name: CASE 851 FX CP Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-851FX
Price: 50000 USD INR
Availability: InStock

CASE 851 FX CP Backhoe Loader Specification and Features

Unleash the Power: CASE 851 FX CP Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

The CASE 851 FX CP Backhoe Loader is a powerful and versatile machine built for demanding applications. This Tier 4B compliant machine boasts a robust 3400 cc turbocharged engine delivering 97 HP and 453 Nm of torque, ensuring superior performance and efficiency. With impressive digging depth (4700 mm), reach (2080 mm at ground level), and a generous 1.2 cum bucket capacity, it handles a wide range of tasks with ease. The closed-center hydraulic system, featuring a high-flow gear pump, offers precise control and smooth operation. The 851 FX CP's durable construction, coupled with features like a power shuttle transmission and power steering, ensures operator comfort and long-term reliability. Its dimensions (transport length: 6060 mm, width over stabilizer: 2270 mm) are optimized for maneuverability in tight spaces. Upgrade your operations with the unmatched power and precision of the CASE 851 FX CP Backhoe Loader.

CASE

Backhoe Loader

8000 Kg

97 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:Tier 4B

Displacement:3400 cc

Air Intake Type:Turbocharged

Gross Power:97 HP

Maximum Torque:453 NM

Dump Height:2660 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:2080 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.2 Cum

See Morebackhoe Loader Dimensiondipper Configuration:15 Feet

Maxd Dig Depth:4700 mm

Reach Ground Level To Swing Center:5900 mm

Reach Ground Level To Rear Wheel Center:7230 mm

Reach At Full Height To Slew Center:2340 mm

Max Working Height:5700 mm

Max Load Over Height:3300 mm

Bucket Rotation:204 Degree

See Moreoverall Dimension Amp Weightmax Operating Weight:8000 Kg

Transport Length:6060 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2300 MM

Track Width Rear:1700 MM

Track Width Front:1880 MM (2WD), 1900 MM (4WD)

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Closed Centre

Pump Type:Gear Pump

Pump Flow:154 lpm

System Relief Pressure:210 Bar

Engine Oil:9.1 Ltr

Rear Axle:17.1 Ltr.

Transmission Oil Capacity:18 Ltr.

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:Power Shuttle with TC

Rear:CARRARO 28.32M

Front:CARRARO 28.32M (2WD)/ CNH PS1300 (4WD)

Front Axle Oscillation:±21 (2WD), ±16 (4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Wet Multi Discs, 4 Discs

Brakes Parking:Manual with Lever

Hd Tyre Rear Optional:14.0 x 25 – 20 PR

Standard Tyre Front:9.0 x 16 – 16 PR

Standard Tyre Rear:16.9 x 28 – 12 PR

Battery:12 V, 130 Ah

Forward:6.2/10.0/20.7/39.2

Reverse:7.4/12.0/24.8/NR

Brand:CASE
