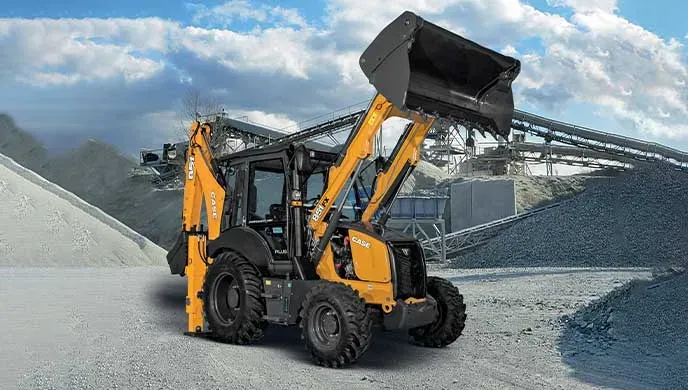

CASE 851 FX Plus Backhoe Loader Specification and Features

Name: CASE 851 FX Plus Backhoe Loader Specification and Features
Brand: CASE
SKU: CASE-851FX
Price: 50000 USD INR
Availability: InStock

CASE 851 FX Plus Backhoe Loader Specification and Features

Unleash the Power: CASE 851 FX Plus Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentExcavatorHeavy Machinery

The CASE 851 FX Plus Backhoe Loader is engineered for superior performance and efficiency. This Stage IV compliant machine boasts a powerful 97 HP engine with 459 Nm of torque, delivering exceptional digging and lifting capabilities. Its robust design, featuring a 1.2 cum bucket capacity and impressive reach and lift heights (2660mm dump height, 3300mm load over height), makes light work of demanding tasks. The advanced hydraulic system, combined with the CARRARO 2WD/4WD transmission, ensures smooth operation and precise control. Experience unmatched versatility and power with features like a 204-degree bucket rotation, a closed-center hydraulic system, and easy-to-use power shuttle. Built for durability and reliability, the CASE 851 FX Plus is your ultimate solution for diverse excavation and material handling needs.

CASE

Backhoe Loader

8100 Kg

97 HP

Features & Highlights

Backhoe Loader

CASE

Construction Equipment

Excavator

Heavy Machinery

Technical Specifications

Compliant:CEV Stage IV

Displacement:3400 cc

Air Intake Type:Turbocharged

Gross Power:97 HP

Maximum Torque:459 NM

Dump Height:2660 mm

Load Over Height:3300 mm

Hinge Pin Height:3600 mm

Hinge Pin Forward Reach:240 mm

Reach At Ground:2080 mm

Rollback At Ground:33 Degree

Dump Angle:45 °

Bucket Capacity (Standard):1.2 Cum

See Morebackhoe Loader Dimensiondipper Configuration:15 Feet

Maxd Dig Depth:4770 mm

Reach Ground Level To Swing Center:5900 mm

Reach Ground Level To Rear Wheel Center:7230 mm

Reach At Full Height To Slew Center:2340 mm

Max Working Height:5700 mm

Max Load Over Height:3300 mm

Bucket Rotation:204 Degree

See Moreoverall Dimension Amp Weightmax Operating Weight:8100 Kg

Transport Length:6060 mm

Width Over Stabilizer:2270 MM

Width Over Bucket:2300 MM

Track Width Rear:1700 MM

Track Width Front:1880 MM (2WD), 1900 MM (4WD)

Wheelbase:2180 mm

Minimum Ground Clearance:380 mm

See Morehydraulic Systemsystem Type:Closed Centre

Pump Type:Variable Displacement

Pump Flow:156 lpm

System Relief Pressure:210 Bar

Engine Oil:9.1 Ltr

Rear Axle:17.1 Ltr.

Hydraulic Oil Replacement:107 / 80 /4000 Ltr./Hr

Transmission Oil Capacity:18 Ltr.

Fuel Tank:129 Ltr

Coolant:20 Ltr.

Hydraulic Oil System:107 Ltr

Transmission Make And Model:CARRARO 2WD/4WD TLB1

Powertrain Type:Power Shuttle with TC

Rear:CARRARO 28.32M

Front:CARRARO 28.32M (2WD)/ CNH PS1300 (4WD)

Front Axle Oscillation:±21 Degree(2WD), ±16 Degree(4WD)

Type:Power Steering

System Pressure:140 Bar

Unit Displacement:125 CC

Turning Circle Diameter Otside Bucket:9.2 mm

Turning Circle Diameter Outside Bucket Not Braked:11.1 mm

Brakes Service:Wet Multi Discs, 4 Discs

Brakes Parking:Manual with Lever

Hd Tyre Rear Optional:14.0 x 25 – 20 PR

Standard Tyre Front:9.0 x 16 – 16 PR

Standard Tyre Rear:16.9 x 28 – 12 PR

Battery:12 V, 110 Ah

Forward:6.2/10.0/20.7/39.2

Reverse:7.4/12.0/24.8/NR

Brand:CASE
