CASE 851 NX Backhoe Loader Specification and Features

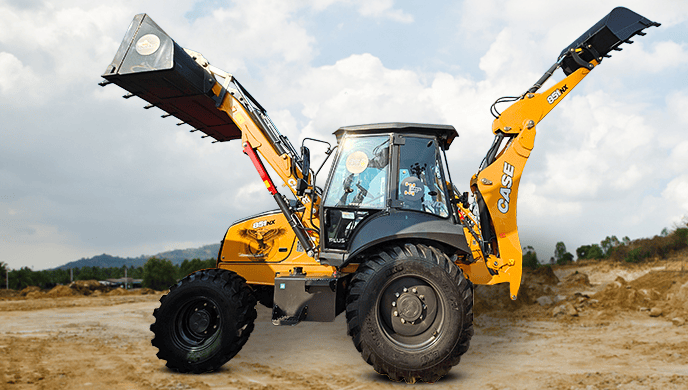

Main image of CASE 851 NX Backhoe Loader Specification and Features

CASE 851 NX Backhoe Loader Specification and Features

Unleash the Power: CASE 851 NX Backhoe Loader

Backhoe LoaderCASEConstruction EquipmentHeavy MachineryExcavator

The CASE 851 NX Backhoe Loader delivers exceptional performance and versatility. Its powerful 74hp turbocharged engine (2800cc displacement) provides ample power for demanding tasks, complemented by a robust hydraulic system (140 LPM pump flow) for efficient operation. Enjoy impressive lifting capacities with a 2720mm dump height and 3300mm load-over height. The 851 NX features a durable design, incorporating a 4x4 power shuttle transmission for superior maneuverability and control. With a generous fuel tank (129 liters) and a range of impressive specifications including bucket breakout force of 5000 kGf, this backhoe loader is built for long hours of productive work. Experience the CASE difference.

Features & Highlights

Backhoe Loader
CASE
Construction Equipment
Heavy Machinery
Excavator

Technical Specifications

Displacement:2800 cc
Air Intake Type:Turbocharged Intercooled
Gross Power:74
Maximum Torque:375 NM
Dump Height:2720 mm
Load Over Height:3300 mm
Hinge Pin Height:3600 mm
Hinge Pin Forward Reach:240 mm
Reach At Ground:1980 mm
Max Reach At Full Height:1190 mm
Dump Angle:45 °
Bucket Capacity (Standard):1100 Cum
See Morebackhoe Loader Dimensionmaxd Dig Depth:4700 mm
Reach Ground Level To Swing Center:5900 mm
Reach Ground Level To Rear Wheel Center:7220 mm
Reach At Full Height To Slew Center:2400 mm
Max Working Height:5700 mm
Max Load Over Height:3800 mm
Bucket Rotation:204 Degree
Bucket Breakout Force:204 Degree -5000 kGf
See Moreoverall Dimension Amp Weightmax Operating Weight:7800 Kg
Transport Length:6600 mm
Width Over Stabilizer:2270
Width Over Bucket:2280 mm
Track Width Rear:1700 mm
Track Width Front:1880 mm
Wheelbase:2180 mm
Minimum Ground Clearance:380 mm
See Morehydraulic Systemsystem Type:Open Center Load Sensing
Pump Type:Variable Displacement
Pump Flow:140 LPM
System Relief Pressure:240 Bar
Engine Oil:8.5 Ltr
Rear Axle:17.1 L
Hydraulic Oil Replacement:44 L
Transmission Oil Capacity:18-2WD, 20-4WD
Fuel Tank:129 Ltr
Fuel Type:Diesel
Coolant:10 L
Hydraulic Oil System:96 Ltr
Powertrain Type:4 Forward - 4 Reverse Power Shuttle Synchromesh Transmission
Rear:CARRARO 28.32M
Front:CNH PS1300 (2WD) CARARRO / NH 26.17 M (4WD)
Front Axle Oscillation:21 (2WD)
Type:Power Steering
System Pressure:140 Bar
Unit Displacement:125 CC
Turning Circle Diameter Otside Bucket:4600 mm
Turning Circle Diameter Outside Bucket Not Braked:5550 mm
Brakes Service:Hydraulic foot operated 2 Disc per side
Brakes Parking:Mechanical Actuated calipper type Brake pack on Rear Axle input Shaft
Standard Tyre Front:9 x 16 - 16 PR
Standard Tyre Rear:16.9 x 28-12 PR
Brand:CASE
