CAT 140M AWD Motor Grader Specification and Features

Name: CAT 140M AWD Motor Grader Specification and Features
Brand: CAT
SKU: CAT-140MAWD
Availability: InStock

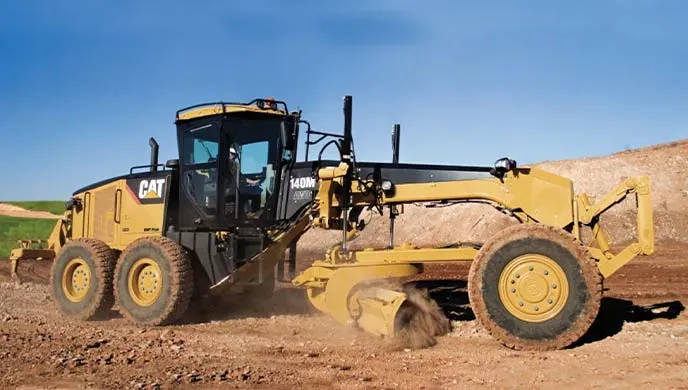

CAT 140M AWD Motor Grader Specification and Features

Unmatched Power and Precision in Motor Grading

Motor GraderHeavy EquipmentCATConstruction MachineryAWD

The CAT 140M AWD Motor Grader boasts superior power and precision. Its Cat C9.3 engine delivers 179 HP and 1237 NM of torque, enabling effortless grading even in challenging conditions. Experience unmatched versatility with a top forward speed of 46.6 kmph and a top reverse speed of 23 mph. The 140M's robust moldboard system, with its extensive side shift capabilities and impressive cutting depth, guarantees exceptional grading performance. Benefit from extended operational times with its large fuel tank capacity (416L) and optimized service refill points. This machine is built for durability and efficiency, making it the ideal solution for large-scale infrastructure projects.

CAT

Motor Grader

179 Hp

Features & Highlights

Motor Grader

Heavy Equipment

CAT

Construction Machinery

AWD

Technical Specifications

Engine Model:Cat C9.3

Net Power Iso 9249 Sae J1349 Eec 80 1269:179 Hp

Bore:115 mm

Stroke:149 mm

Engine Rpm:2000 rpm

Maximum Torque Iso 9294:1237 NM

Top Forward Speed:46.6 Kmph

Top Reverse Speed:23 Mph

See Moreservice Refill Capacitiesfuel Tank:416 L

Circle Drive:7 L

Cooling System:40 L

Hydraulic System:64 L

Moldboard Side Shift Right:660 mm

Moldboard Side Shift Left:510 mm

Maximum Lift Above Ground:480 mm

Maximum Depth Of Cut:715 mm

Width Moldboard:3.7 mm

Height:610 mm

End Bit:152 mm

Cutting Edge:152 mm

Arc Radius:413 mm

Throat Clearance:166 mm

Length Of Machine:8754 mm

Brand:CAT
