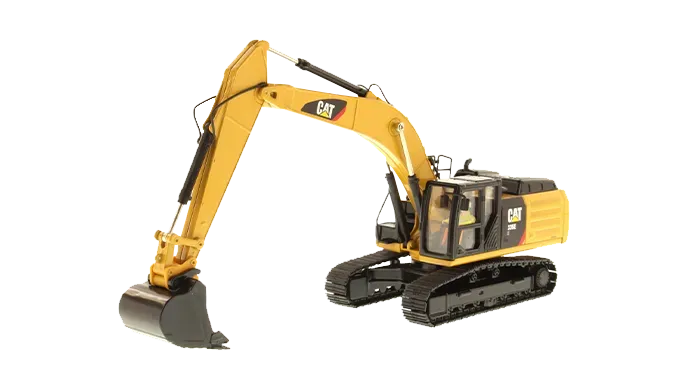

CAT 336E Excavator Specification and Features

Name: CAT 336E Excavator Specification and Features
Brand: CAT
SKU: CAT-336E
Availability: InStock

CAT 336E Excavator Specification and Features

Unleash the Power: CAT 336E Excavator

ExcavatorHeavy EquipmentConstruction MachineryCATHydraulic Excavator

The CAT 336E Excavator is a powerful and versatile machine designed for heavy-duty construction and excavation projects. With a net power of 308 HP (ISO 9249) and a robust engine delivering 323 HP, this excavator boasts impressive performance and efficiency. Its advanced hydraulic system, featuring a main system max flow of 578 Lpm and maximum pressures reaching 37000 psi (travel), ensures smooth and powerful operation. The 336E offers exceptional digging capabilities, with a max digging depth of 7490 mm and a bucket capacity of 2.28 cubic meters. Its durable construction and advanced engineering make it ideal for demanding applications. Key features include a 1500 mm bucket, 3490 mm tail swing radius, and a comfortable operator cab. Experience unmatched power and precision with the CAT 336E.

CAT

Excavator

37300 Kg

308 HP

Features & Highlights

Excavator

Heavy Equipment

Construction Machinery

CAT

Hydraulic Excavator

Technical Specifications

Net Power (ISO 9249):308 HP

Power (ISO 14396):328 HP

Bore:115 mm

Stroke:149 mm

Displacement:9.3 L

Engine Power:323 Hp

Main System Max Flow:578 Lpm

Maximum Pressure Equipment:35000 psi

Maximum Pressure Travel:37000 psi

Maximum Pressure Swing:28000 psi

Swing Speed:9.0 Rpm

Maximum Swing Torque:109 kN·m

Weight:37300 Kg

Operating Weight:37300 Kg

Tank Capacity:620 L

Service Refill:57 L

Engine Oil:30.5 L

Swing Drive:19 L

Weights Final Drive:8 L

Hydraulic System + Tank:380 L

Hydraulic Tank:175 L

Bucket:1500 mm

Shipping Height (Top of Cab):3660 mm

Tail Swing Radius:3490 mm

Counterweight Clearance:1220 mm

Ground Clearance:510 mm

Length To Center Of Rollers:4040 mm

Dimensions Transport Width:3440 mm

Max Digging Depth:7490 MM

Bucket Capacity:2.28 Cum

Maximum Reach At Ground Level:11020 mm

Maximum Cutting Height:10320 mm

Maximum Depth Cut For 2440 Mm 8ft Level Bottom:6820 mm

Max Vertical Wall Depth:5500 mm

Boom Cylinder Bore:150 mm

Boom Cylinder Store:1440 mm

Bucket Cylinder Bore:150 mm

Bucket Cylinder Store:1151 mm

Stick Cylinder Bore:170 mm

Brand:CAT
