CAT 424 Backhoe Loader Specification and Features

Name: CAT 424 Backhoe Loader Specification and Features
Brand: CAT
SKU: CAT-424BL
Availability: InStock

CAT 424 Backhoe Loader Specification and Features

Unmatched Power and Versatility: CAT 424 Backhoe Loader

Backhoe LoaderCAT 424Construction EquipmentHeavy MachineryExcavator

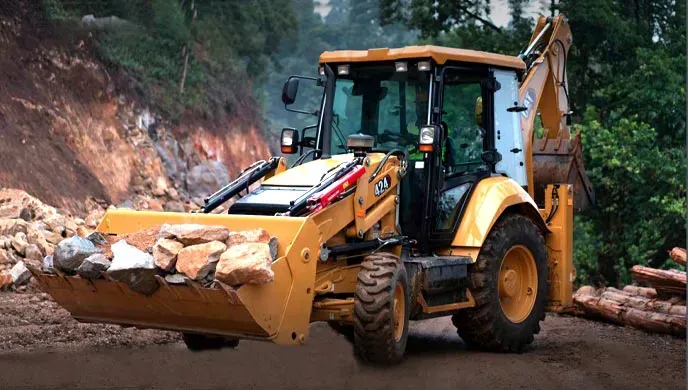

The CAT 424 Backhoe Loader is a versatile and powerful machine designed for demanding construction, agricultural, and industrial applications. This BS-V compliant loader is equipped with a robust 75 HP, 3600cc turbocharged engine, delivering exceptional performance. Its impressive lifting capacity of 3586 kg, coupled with generous bucket capacities (1 cum loader, 0.27 cum backhoe), ensures efficient material handling. The 424 features a closed-center, variable-flow axial piston pump system (132 L/min) for precise hydraulic control and maximum uptime. Experience enhanced operator comfort in the spacious cabin, complemented by features like a 9-degree front axle oscillation and a tight turning circle (12.2m outside bucket, unbraked).

CAT

Backhoe Loader

8760 Kg

75 HP

Features & Highlights

Backhoe Loader

CAT 424

Construction Equipment

Heavy Machinery

Excavator

Technical Specifications

Compliant:BS-V

Displacement:3600 cc

Air Intake Type:Turbo Intercooled

Gross Power:75 HP

Maximum Torque:424 NM

Dump Height:2766 mm

Hinge Pin Height:3473 mm

Max Reach At Full Height:1521 mm

Rollback At Ground:39 Degree

Dump Angle:46 °

Bucket Capacity (Standard):1 Cum

Maximum Lifting Capacity:3586 Kg

Loader Bucket Capacity:1 Cum

See Morebackhoe Loader Dimensionmaxd Dig Depth:4707 mm

Max Working Height:4394 mm

Bucket Rotation:205 Deg.

Backhoe Bucket Capacity:0.27 Cum

Max Operating Weight:8760 Kg

Transport Length:5708 mm

Width Over Stabilizer:2242 MM

Wheelbase:2200 mm

Minimum Ground Clearance:454 mm

Height To Top Of Cabin:2928 mm

Overall Transport Height:3732 mm

System Type:Closed Center

Pump Type:Variable-Flow, Axial Piston

Pump Flow:132 L/min

Engine Oil:9 Ltr

Rear Axle:16.5 Ltr

Transmission Oil Capacity:14 Ltr

Fuel Tank:160 Ltr

Coolant:20 Ltr

Hydraulic Oil System:42 Ltr

Front Axle Oscillation:9 Degree

Type:Front Wheel Steering

Turning Circle Diameter Outside Bucket Not Braked:12.2 mm

Standard Tyre Rear:16.9-28

Forward:5.7/9.6/23/40

Reverse:5.7/9.6/23/40
