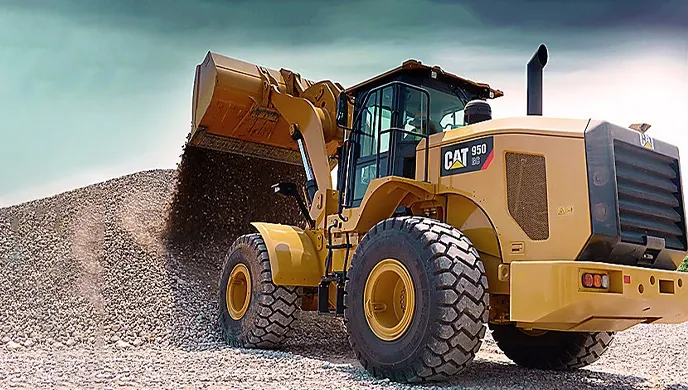

CAT 950 GC Wheeled Loader Specification and Features

Name: CAT 950 GC Wheeled Loader Specification and Features
Brand: CAT
SKU: CAT-950GC
Availability: InStock

CAT 950 GC Wheeled Loader Specification and Features

Unleash the Power: CAT 950 GC Wheeled Loader

CATWheeled LoaderConstruction EquipmentHeavy MachineryMaterial Handling

The CAT 950 GC Wheeled Loader is a powerful and versatile machine designed for demanding applications. With a max power of 227 hp and a max torque of 1020 Nm, it delivers exceptional performance in material handling and earthmoving tasks. Its robust build, featuring a 7.01L displacement engine and a breakout force of 154 kN, ensures optimal efficiency and durability. The 950 GC boasts impressive cycle times (10.1 seconds) and a substantial tipping load of 11160 kg. Operator comfort and ease of use are prioritized with intuitive controls and a well-designed layout. The inclusion of key specifications such as ground clearance (460mm), wheelbase (3300 mm) and various height measurements ensures informed decision-making for optimal project suitability. This CAT wheeled loader represents a significant investment in productivity and efficiency.

CAT

Wheeled Loader

19069 kg

227 Hp

Features & Highlights

CAT

Wheeled Loader

Construction Equipment

Heavy Machinery

Material Handling

Technical Specifications

Max Power Hp:227 Hp

Max Torque Nm:1020 Nm

Bore Mm:105 mm

Stroke Mm:135

Displacement L:7.01

Breakout Force Kn:154 kN

Tipping Loadfull Turn Kg:11160 kg

Operating Weight Kg:19069 kg

Fuel Tank:290 L

Cooling System:48 L

Crankcase:20 L

Transmission:45 L

Differentials And Final Drives Front:40 L

Differentials And Final Drives Rear:38 L

Steering System Pump Type:Piston

Implement Maximum Flow:240 L/min

Implement Maximum Operating Pressure:27900

Raise From Carry Position:6.1 Seconds

Dump At Maximum Raise:1.2 mm

Lower Empty Float Down:2.8 Seconds

Total Cycle Time:10.1 Seconds

Height To Top Of Hood Mm:2568 mm

Height To Top Of Exhaust Pipe Mm:3596 mm

Height To Top Of Rops Mm:3458 mm

Ground Clearance Mm:460 mm

Bpin Height Mm:4188 mm

Wheelbase Mm:3300 mm

Center Line Of Rear Axle To Hitch Mm:750 mm

Rack Back Maximum Lift Deg:60 mm

Brand:CAT
