HYUNDAI R230LM Smart Excavator Specification and Features

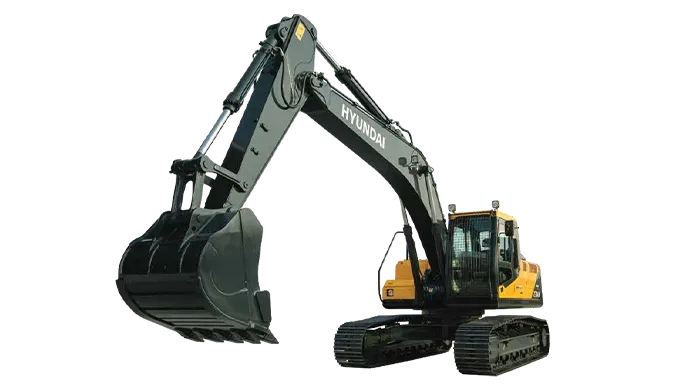

Main image of HYUNDAI R230LM Smart Excavator Specification and Features

HYUNDAI R230LM Smart Excavator Specification and Features

Unleash the Power: HYUNDAI R230LM Excavator

ExcavatorHyundaiHeavy EquipmentConstruction MachineryR230LM

The HYUNDAI R230LM Smart Excavator is a powerful and efficient machine designed for heavy-duty applications. With a net power of 145 HP and a 1.7 cubic meter bucket capacity, it delivers exceptional digging performance. Its advanced hydraulic system boasts a main system max flow of 220 Lpm, ensuring smooth and responsive operation. The R230LM offers impressive digging depths (6220 mm) and lifting capacities (3910 kg), making it ideal for a wide range of excavation projects. Built for durability, it features robust construction and a reliable engine, minimizing downtime and maximizing productivity. Key features include a 23300 kg operating weight, 11 rpm swing speed, and compact dimensions for maneuverability in tight spaces. Experience the efficiency and precision of Hyundai's Smart technology.

Features & Highlights

Excavator
Hyundai
Heavy Equipment
Construction Machinery
R230LM

Technical Specifications

Net Power (ISO 9249):145 HP
Engine Power:148 Hp
Main System Max Flow:220 Lpm
Swing Speed:11 rpm
Weight:23300 Kg
Operating Weight:23300 Kg
Tank Capacity:340 L
Service Refill:35 L
Engine Oil:21 L
Weights Final Drive:5.8 L
Hydraulic System + Tank:290 L
Hydraulic Tank:180 L
Hydraulic System:290 Ltr
Shipping Height (Top of Cab):2920 mm
Shipping Length:9570 mm
Tail Swing Radius:2830 mm
Counterweight Clearance:1060 mm
Ground Clearance:480 mm
Track Gauge:2390 mm
Max Digging Depth:6220 MM
Bucket Capacity:1.7 Cum
Max Vertical Wall Depth:5720 mm
Lifting Capacity:3910 Kg
Brand:HYUNDAI
