JCB 3DXL PLUS Backhoe Loader Specification and Features

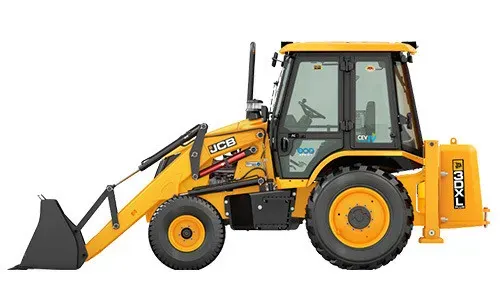

Main image of JCB 3DXL PLUS Backhoe Loader Specification and Features

JCB 3DXL PLUS Backhoe Loader Specification and Features

Unleash the Power: JCB 3DXL PLUS Backhoe Loader

Backhoe LoaderJCBConstruction EquipmentHeavy MachineryExcavator

The JCB 3DXL PLUS Backhoe Loader delivers unparalleled performance and versatility. This robust machine boasts a powerful 74hp engine, generating 400NM of torque for superior digging and lifting capabilities. Its impressive specifications include a 2740mm dump height, 3320mm load-over height, and a generous 1.1 cubic meter loader bucket capacity. The 3DXL PLUS features a durable design, incorporating JCB Max Trac torque proportioning differential for enhanced traction and control. Experience efficient operation with its advanced hydraulic system and reliable braking system. This backhoe loader is ideal for a variety of construction and agricultural applications, offering maximum productivity and return on investment.

Features & Highlights

Backhoe Loader
JCB
Construction Equipment
Heavy Machinery
Excavator

Technical Specifications

Gross Power:55kW (74hp) @ 2200 rpm
Maximum Torque:400 NM
Dump Height:2740 mm
Load Over Height:3320 mm
Max Reach At Full Height:1150 mm
Bucket Capacity (Standard):1.1 Cum
Loader Arm Breakout Force:5635 kgf
Loader Bucket Capacity:1.1 Cum
Max Reach (Bucket Dumped):1150 mm
Backhoe Bucket Capacity:0.26 Cum
Max Operating Weight:7620 Kg
Wheelbase:2170 mm
Pump Flow:114 lpm
Engine Oil:15 Ltr
Rear Axle:23 Ltr
Transmission Oil Capacity:16 Ltr.
Fuel Tank:128 Ltr
Coolant:15 Ltr
Hydraulic Oil System:130 Ltr
Rear:Drive axle rigdly mounted, incorporated JCB Max Trac troque proportioning differential, driven by short propshaft from gear box
Front:Steer axle, centrally pivoted, with oscillation angle of 16
Type:Power track steering
System Pressure:320 p.s.i. (160 bar)
Brakes Service:JCB ‘Q’ brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance. Operated
Standard Tyre Front:9 x 16 - 16 PR
Standard Tyre Rear:16.9 x 28 - 12 PR
Brand:JCB
