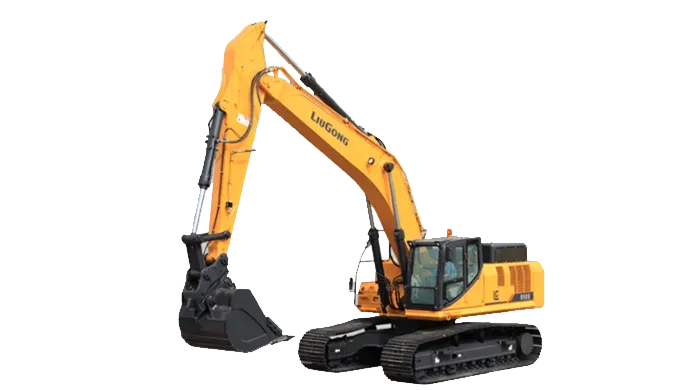

Main image of LiuGong 950E Excavator Specification and Features

LiuGong 950E Excavator Specification and Features

Unleash the Power: LiuGong 950E Excavator

ExcavatorHeavy MachineryConstruction EquipmentLiuGong950E

The LiuGong 950E Excavator is a powerful and versatile machine designed for heavy-duty construction and excavation projects. Boasting a robust 378 hp engine and a massive 3.2 cum bucket capacity, this excavator delivers exceptional digging performance and material handling capabilities. With a maximum digging depth of 6521 mm and a maximum cutting height of 9977 mm, the 950E excels in a wide range of applications. Its durable construction, featuring a 11.8 L displacement engine and a reinforced structure, ensures long-term reliability and minimal downtime. Key features include a high main system max flow (380 Lpm) for efficient hydraulic operation, impressive lifting capacity (19420 kg), and a well-designed operator's cab for enhanced comfort and control. The LiuGong 950E is built to perform, delivering unmatched power and precision for demanding tasks.

Price

On Request

FOB Price. Subject to change.

Features & Highlights

Excavator
Heavy Machinery
Construction Equipment
LiuGong
950E

Technical Specifications

Net Power (ISO 9249):378 hp
Bore:125 mm
Stroke:147 mm
Displacement:11.8 L
Engine Power:378 Hp
Main System Max Flow:380 Lpm
Weight:49800 Kg
Operating Weight:49800 Kg
Tank Capacity:650 L
Service Refill:50 L
Engine Oil:34 L
Swing Drive:2 L
Weights Final Drive:15 L
Hydraulic System + Tank:470 L
Hydraulic Tank:290 L
Hydraulic System:470 L
Shipping Height (Top of Cab):3550 mm
Shipping Length:12030 mm
Tail Swing Radius:3640 mm
Counterweight Clearance:1324 mm
Ground Clearance:532 mm
Track Length:5256 mm
Length To Center Of Rollers:4257 mm
Track Gauge:2740 mm
Max Digging Depth:6521 MM
Boom Length:7060 mm
Bucket Capacity:3.2 Cum
Maximum Cutting Height:9977 mm
Maximum Depth Cut For 2440 Mm 8ft Level Bottom:7218 mm
Lifting Capacity:19420 Kg
Brand:LiuGong
