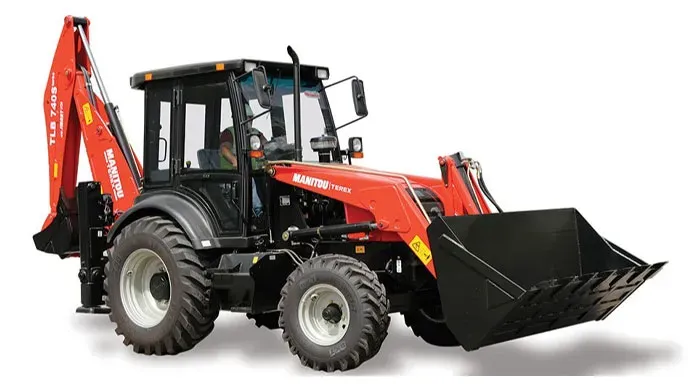

Manitou TLB 740S Backhoe Loader Specification and Features

Name: Manitou TLB 740S Backhoe Loader Specification and Features
Brand: Manitou
SKU: MAN-TLB740S
Availability: InStock

Manitou TLB 740S Backhoe Loader Specification and Features

Manitou TLB 740S: Powerful Performance. Unmatched Versatility.

Backhoe LoaderManitouConstruction EquipmentTLB 740SHeavy Machinery

The Manitou TLB 740S Backhoe Loader is a powerful and versatile machine, ideal for a wide range of construction and agricultural tasks. This BS-III compliant machine boasts a 76 HP engine delivering 300 NM of torque for superior performance. With a generous 1 cubic meter bucket capacity and impressive lift capacity of 1384 kg, the TLB 740S handles heavy loads with ease. Its robust design features include a 45-degree rollback at ground level, 194-degree bucket rotation, and a maximum digging depth of 4741 mm. The operator benefits from features like reliable hydraulically assisted power steering, self-adjusting wet disc brakes, and a comfortable cabin. Comprehensive specifications cover dimensions, fluid capacities, and operational parameters, ensuring seamless integration into any operation. This durable and efficient backhoe loader is engineered for demanding applications and long-term reliability.

Manitou

Backhoe Loader

7500 Kg

76 HP @ 2200 rpm

Features & Highlights

Backhoe Loader

Manitou

Construction Equipment

TLB 740S

Heavy Machinery

Technical Specifications

Compliant:BS-III

Displacement:4.16 cc

Gross Power:76 HP @ 2200 rpm

Maximum Torque:300 NM

Dump Height:2708 mm

Load Over Height:3310 mm

Hinge Pin Height:3550 mm

Max Reach At Full Height:1282 mm

Rollback At Ground:45 Degree

Dump Angle:57 °

Bucket Capacity (Standard):1 Cum

Loader Arm Breakout Force:4685 kgf

See Morebackhoe Loader Dimensionmaxd Dig Depth:4741 mm

Reach Ground Level To Swing Center:5730 mm

Max Working Height:3762 mm

Max Load Over Height:3553 mm

Bucket Rotation:194 Deg

Dipper Tear Out Force:3946 kgf

Max Lift Capacity:1384 Kg

Backhoe Bucket Capacity:0.24 Cum

Max Operating Weight:7500 Kg

Transport Length:7338 mm

Width Over Bucket:2235 MM

Wheelbase:2130 mm

Minimum Ground Clearance:400 mm

Height To Top Of Cabin:2770 mm

Pump Flow:119LPM(76s43) O 2200 RPM

System Relief Pressure:3250 PSI (225 bar)

Engine Oil:11 Ltr

Rear Axle:17.5 Ltr

Transmission Oil Capacity:15 Ltr

Fuel Tank:120 Ltr

Coolant:16 Ltr

Hydraulic Oil System:90 Ltr

Rear:Rear Drive Axle ngidly mounted with out-board planetary final drives for easy maintenance

Front:Front-steer Axle with 16' osulation for maximum ground contact m undulated conditions

Type:Reliable hydraulically assisted power steering

Brakes Service:Self-actuating and self-adlustmg, high capauty, sealed, wet disc brakes

Standard Tyre Front:9 x16-16 PR, 125x18-12 PR/9 x16 ~ 16 PR

Standard Tyre Rear:14 x 25 - 20 PR, 16.9X28-12PR

Battery:12V 65 A

Forward:5.4, 8.6, 19.9, 40 Km/hr

Brand:Manitou
