Manitou TLB 844S 4WD Backhoe Loader Specification and Features

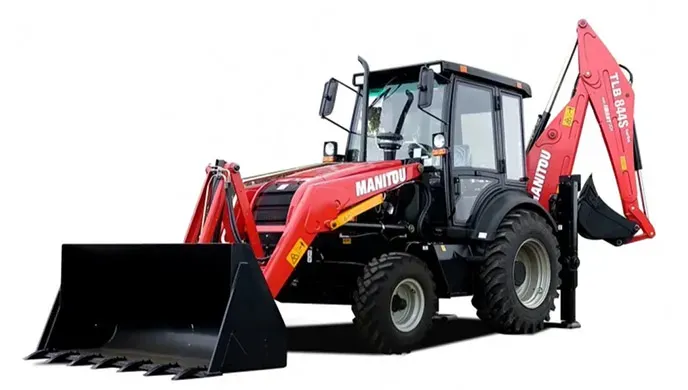

Main image of Manitou TLB 844S 4WD Backhoe Loader Specification and Features

Manitou TLB 844S 4WD Backhoe Loader Specification and Features

Unmatched Power and Versatility: The Manitou TLB 844S Backhoe Loader

Backhoe LoaderManitou4WDConstruction EquipmentAgricultural Machinery

The Manitou TLB 844S 4WD Backhoe Loader is a powerhouse of versatility and performance. Boasting a robust 90 HP engine and impressive breakout forces (4756 kgf loader arm, 3946 kgf dipper), this backhoe loader tackles the toughest jobs with ease. Its generous bucket capacities (1 cum standard, 0.24 cum backhoe) and significant lift capacity (3465 kg) ensure high productivity. Safety and efficiency are paramount, highlighted by features like reliable hydraulically assisted power steering, self-adjusting brakes, and a spacious cabin. With a BS-III compliant engine and a comprehensive range of specifications, from a 45-degree rollback angle to generous fuel tank capacity, the Manitou TLB 844S delivers exceptional value and reliability for demanding construction and agricultural applications.

Features & Highlights

Backhoe Loader
Manitou
4WD
Construction Equipment
Agricultural Machinery

Technical Specifications

Compliant:BS-III
Displacement:4.16 cc
Gross Power:90 HP @ 2200 rpm
Maximum Torque:350 NM
Dump Height:2708 mm
Load Over Height:3310 mm
Hinge Pin Height:3550 mm
Rollback At Ground:45 Degree
Dump Angle:57 °
Bucket Capacity (Standard):1 Cum
Bucket Breakout Force:4756 kgf
Loader Arm Breakout Force:4685 kgf
See Morebackhoe Loader Dimensionmaxd Dig Depth:4741 mm
Reach At Full Height To Slew Center:5730 mm
Dipper Tear Out Force:3946 kgf
Max Lift Capacity:3465 Kg
Backhoe Bucket Capacity:0.24 Cum
Max Operating Weight:7600 Kg
Transport Length:7338 mm
Width Over Bucket:2330 MM
Wheelbase:2130 mm
Minimum Ground Clearance:400 mm
Height To Top Of Cabin:2770 mm
Overall Transport Height:3762 mm
Pump Flow:145 LPM (81+64) @ 2200 rpm
System Relief Pressure:3250 PSI (225 bar)
Engine Oil:11 Ltr
Rear Axle:17.5 Ltr
Transmission Oil Capacity:15 Ltr
Fuel Tank:120 Ltr
Coolant:16 Ltr
Hydraulic Oil System:90 Ltr
Type:Reliable hydraulically assisted power steering
Brakes Service:self-actuating and self-adjusting, high capacity, sealed, wet disc brakes, maintenance free
Standard Tyre Front:9 x 16 - 16PR, 12.5 x 18 - 12 PR
Standard Tyre Rear:14 x 25 - 20 PR, 16.9 x 28 - 12 PR
Battery:12V and 65A
Forward:5.4, 8.6, 19.9, 40 km/hr
Brand:Manitou
