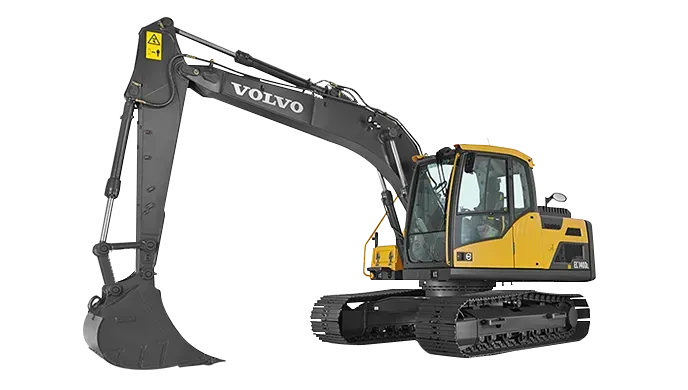

Main image of Volvo EC140DL Excavator Specification and Features

Volvo EC140DL Excavator Specification and Features

Volvo EC140DL: The Ultimate Excavator for Power and Precision

ExcavatorVolvoConstruction EquipmentHeavy MachineryHydraulic Excavator

The Volvo EC140DL Excavator: Power, Precision, and Performance. This robust machine boasts a powerful 105 Hp engine and a 3.77L displacement, delivering exceptional digging force and efficiency. With a maximum digging depth of 6030mm and a bucket capacity of 0.66 cubic meters, the EC140DL tackles tough jobs with ease. Its compact design, featuring a 2200mm tail swing radius, allows for maneuverability in tight spaces. Built for reliability and durability, this excavator is designed for demanding projects, providing superior performance and return on investment. Key features include a 13.2L engine oil capacity, 230L hydraulic system, and impressive lifting capacity of 3500 kg. Experience the Volvo difference.

Features & Highlights

Excavator
Volvo
Construction Equipment
Heavy Machinery
Hydraulic Excavator

Technical Specifications

Bore:100 mm
Stroke:120 mm
Displacement:3.77 L
Engine Power:105 Hp
Main System Max Flow:118 Lpm
Weight:16730 Kg
Operating Weight:16730 Kg
Engine Oil:13.2 L
Hydraulic System + Tank:230 L
Hydraulic Tank:85 L
Hydraulic System:230 L
Tail Swing Radius:2200 mm
Counterweight Clearance:920 mm
Ground Clearance:436 mm
Track Length:3760 mm
Track Gauge:1990 mm
Max Digging Depth:6030 MM
Bucket Capacity:0.66 Cum
Max Vertical Wall Depth:5460 mm
Lifting Capacity:3500 Kg
